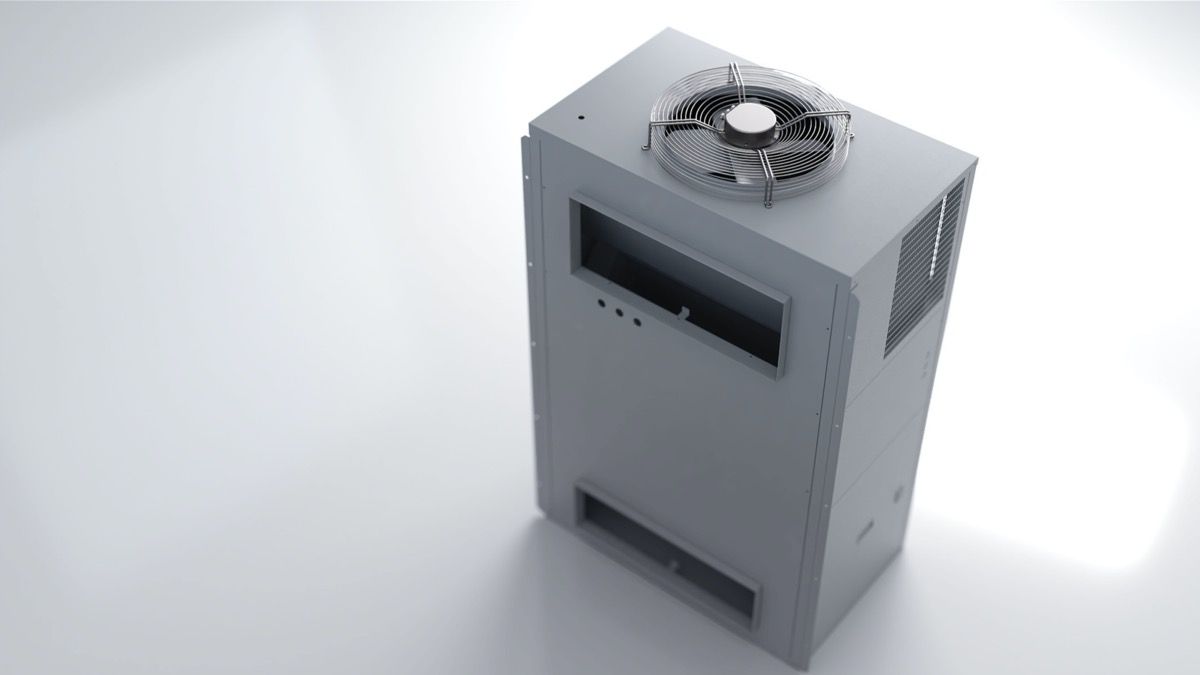

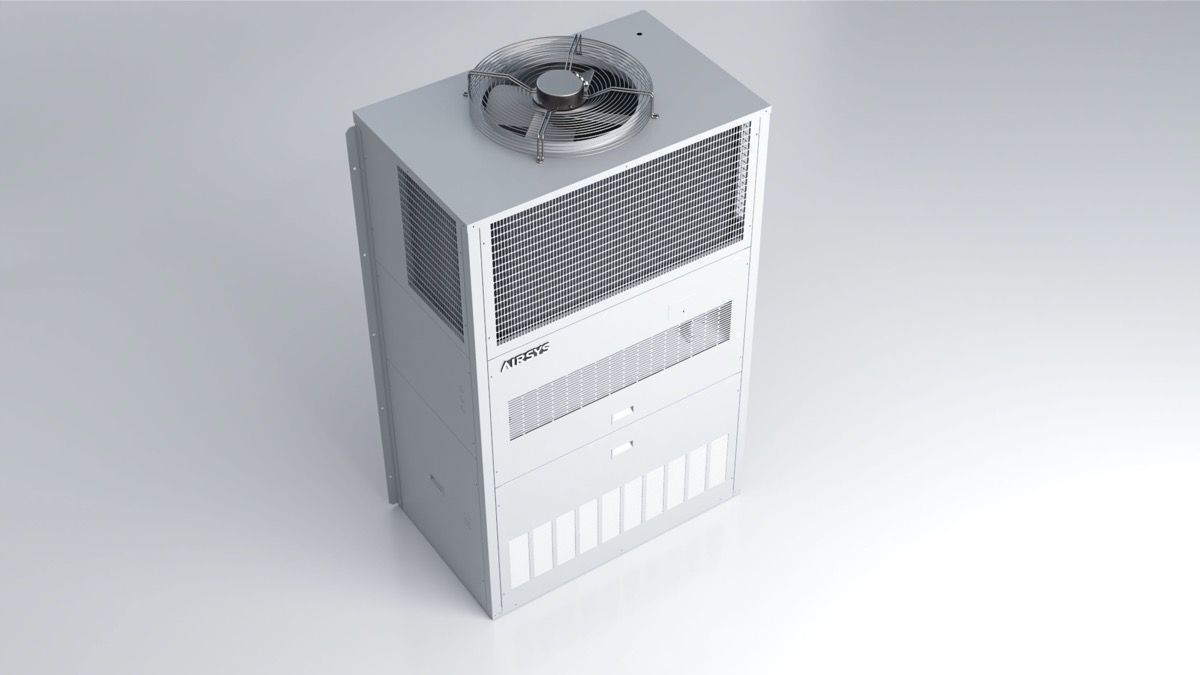

UNICOOL variable speed packaged air conditioner is one of the high efficiency cooling products of AIRSYS P-CRAC family, featuring classic packaged unit with integrated free cooling function for outdoor installation.
UNICOOL series is designed primarily for electronic and mechanical equipment shelters, container data center, E-Houses with both downflow and upflow air supply.
Energy Saving
• Integrated with free cooling system, saving up to 90% of the energy requirements
• VFD technology - Variable speed compressor
• EC supply fan
• Auto-control optimizes system performance
High Reliability
• 24*7 uninterruptible operation design
• Overcome locational and environmental constraints, unit can work at minimum -30°C, maximum 53°C ambient temperature continuously and the storage temperature can vary between -40°C and 70°C.
• Classic line with low failure rate
• Indestructible framework with dual layer exterior protection
• World famous brand reliable components with MTBF > 80,000hrs
Intelligent Control
With the ‘mind’ given to it, it can conduct self-diagnosis, react and cope with various situations, communicate with user and other units and deliver prominent energy efficiency.
• Fully automatic control, working mode auto-alternated, automatic self-diagnosis
• Running Data Logging and web server monitoring system give you full availability
Safety Operation
Highly safety performance guaranteed by functions and protections designed for the unit.
• 4 Levels of Password Protection
• Air filter protection device has been developed to maximize the filter working life and enable free cooling to function in harsh environments
Easy Installation & Maintenance Easy
• Outdoor Wall-mounted Package Design- no interior space is required.
• Plug-in wiring connection and easy removable components
• Accessible component easy to maintenance
• Lockable server breaker access- service safety
• Designed for easy lifting
Certification
Highly safety performance is guranteed by meeting the following standards:
• AHRI
• ETL
• CE
Specification
| Unit Model | 7V1B2 | 11V1T3 | 11V1B3 | 15V1T4 | 15V1B4 | 28V2B5 | 28V1B5 | 28V1B5 | ||
| Air flow Scheme | DL | O | DL | O | DL | DL | DL | DL | ||
| Power Supply | 230V/1PH/60Hz | 230V/3PH/60Hz | 460V/3PH/60Hz | |||||||
| Performance |
| |||||||||
| Total Capacity | kW | 7.2 | 10.2 | 10.3 | 14.8 | 15.1 | 28.1 | 28.1 | 28.1 | |
| Sensible Capacity | kW | 6 | 8.5 | 8.5 | 12.5 | 13.2 | 23.7 | 23.3 | 23.4 | |
| EER(1) | 11.5 | 11.5 | 11.5 | 11 | 11.5 | 10.3 | 11.5 | 11 | ||
| Free Cooling Capacity | kW | 9.1 | 12.1 | 10.8 | 19 | 16.9 | 32.4 | 32.4 | 40.2 | |
| EER(2) | 110.7 | 105.6 | 108.2 | 104.5 | 84.6 | 73.3 | 73.3 | 51.9 | ||
| Electrical Heater Capacity | kW | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |

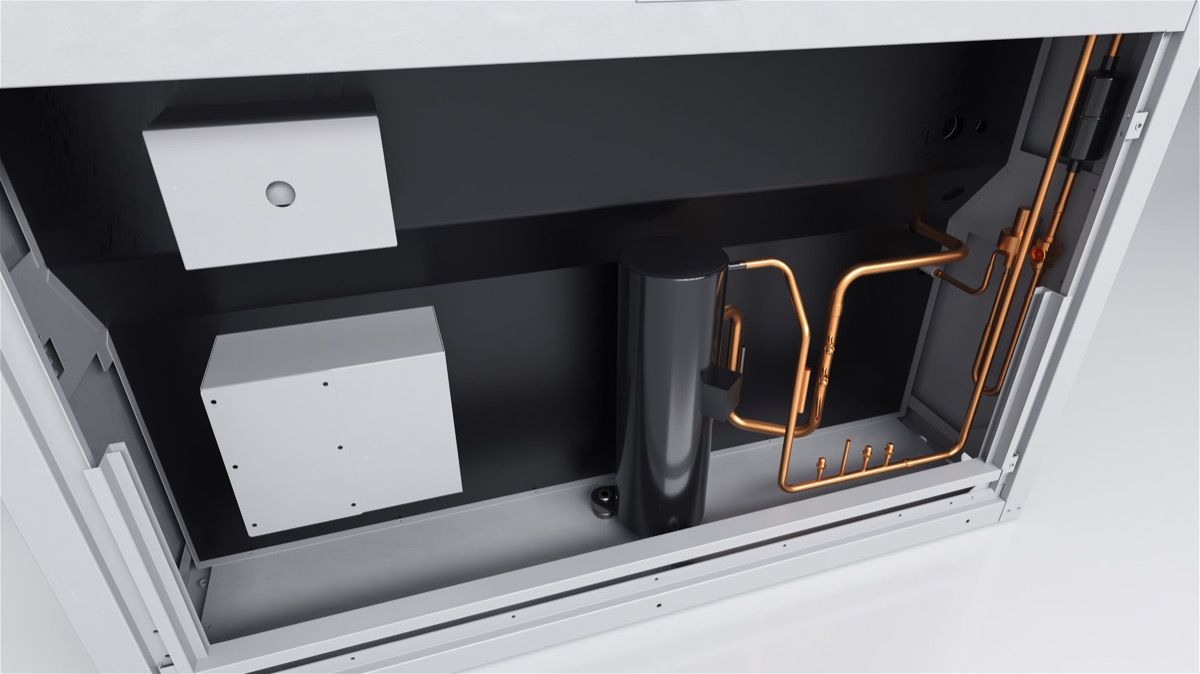

| Compressor |
| |||||||||
| Type | Rotary | Scroll | ||||||||
| Quantity | n. | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | |
| Power Input | kW | 1.73 | 2.18 | 2.1 | 3.36 | 3.39 | 4 | 3.91 | 6.7 | 7.02 |
| Current Input | A | 7.5 | 9.5 | 9.1 | 14.6 | 14.7 | 17.4 | 17 | 16.8 | 8.8 |
| Evaporator Fan |
| |||||||||
| Type | EC Centrifugal Fan | |||||||||
| Quantity | n. | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| Air Volume | m³/h | 1,844 | 2,800 | 2,500 | 4,100 | 3,900 | 5,900 | 6,900 | 6,900 | |

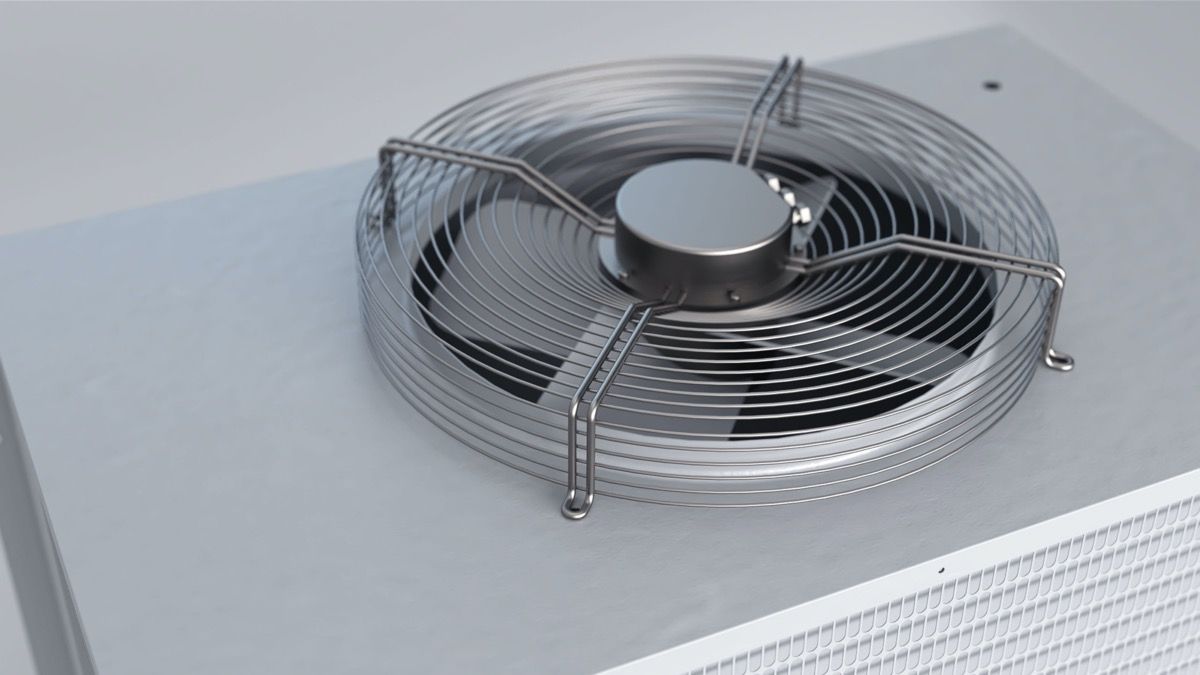

| Condenser Fan |
| |||||||||
| Type | Axial Fan | |||||||||
| Quantity | n. | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| Air Volume | m³/h | 3,420 | 7,000 | 5,500 | 8,300 | 7,800 | 13,500 | 10,000 | 12,000 | |
| Refrigerant |
| |||||||||
| Type | R410A | |||||||||
| Control | Electronic Expansion Valve | |||||||||
| Air Filter |
| |||||||||
| Preliminary Air Filter (G2) | n. | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| Main Air Filter (G4) | n. | 1 | 2 | 2 | 2 | 2 | 3 | 2 | 2 | |
| Dimensions |
| |||||||||
| Width | mm | 1010 | 1141 | 1159 | 1355 | 1359 | 1460 | 1460 | 1460 | |
| Depth | mm | 698 | 680 | 698 | 912 | 794 | 1075 | 1075 | 1075 | |
| Height | mm | 2148 | 2360 | 2148 | 2360 | 2110 | 2448 | 2448 | 2448 | |
| Weight | kg | 229 | 293 | 287 | 390 | 380 | 632 | 590 | 590 | |
